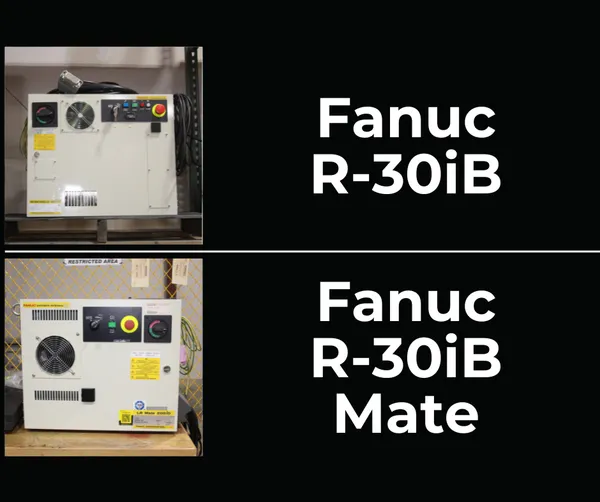

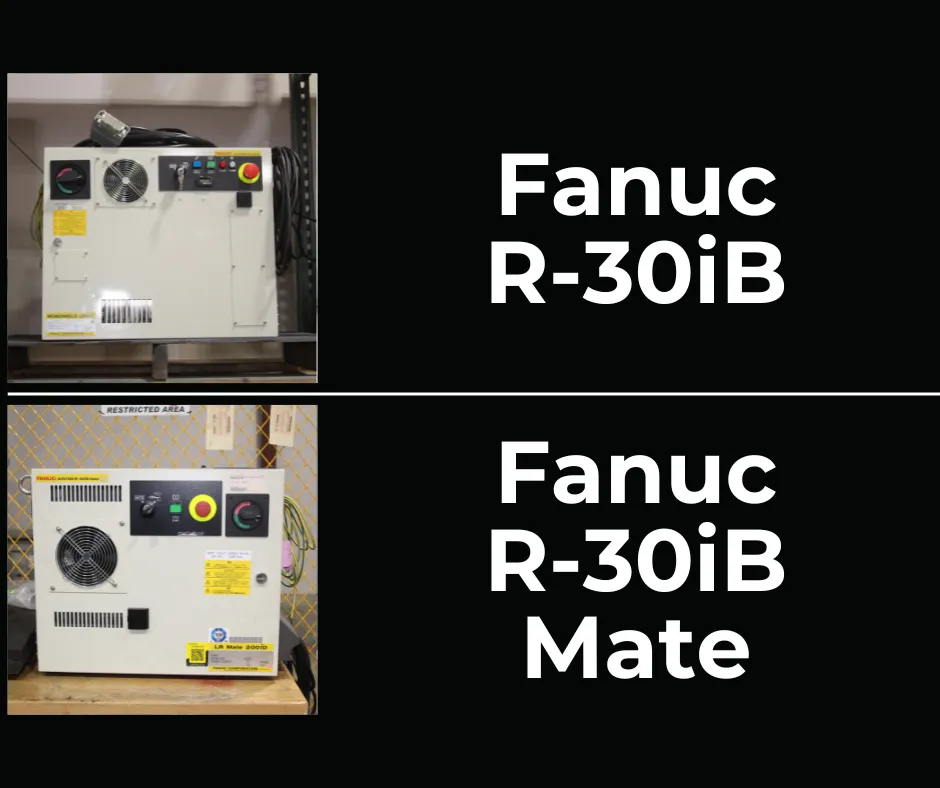

Comparing Fanuc R-30iB and R-30iB Mate Controllers: A Comprehensive Guide

In robotics, Fanuc stands out as a leader with its advanced and reliable controllers, setting industry standards for performance and innovation. It is always beneficial for manufacturers and operators to stay informed about specific models and how they might align with their operations. Among the various models in their extensive lineup, the R-30iB and R-30iB Mate controllers are particularly noteworthy due to their distinctive features and exceptional capabilities.

The R-30iB controller is renowned for its high processing power, extensive connectivity options, and robust handling of complex robotic applications, making it ideal for large-scale industrial operations. On the other hand, the R-30iB Mate controller, while compact and more cost-effective, does not compromise performance and is perfect for smaller, more specialized tasks or environments with space constraints.

This comprehensive guide will delve into the technical specifications, key features, and practical applications of both the R-30iB and R-30iB Mate controllers. By understanding the two models, such as differences in CPU performance, I/O capabilities, and integration options, you will be better equipped to select the controller that perfectly matches your operational needs and budget. Whether upgrading an existing system or implementing a new robotic solution, this guide provides the insights necessary to make an informed decision, ensuring optimal efficiency and productivity in your robotic applications.

Introduction to Fanuc Controllers

Fanuc controllers are the brains behind their robotic systems. They house critical components like the CPU, axis amplifiers, I/O, mode selectors, and safety features. Understanding what’s inside these controllers is crucial for efficient operation and troubleshooting.

Overview of the R-30iB Mate Controller:

The R-30iB Mate Controller is a compact and efficient unit designed for smaller applications. Despite its size, it offers a range of powerful features. It has been designed specifically for M series and LR-Mate robots. It is stackable for multi-robot cells.

Key Features

• Compact Design: It is smaller and more space-efficient, making it ideal for applications where space is a constraint.
• Mode Selector Switch: Allows selection between Auto, T1, and T2 modes, or use DCS (Dual Check Safety) for mode changes.
• Cycle Start Button: Enables the robot to start operations without using a PLC.
• Emergency Stop (E-Stop): Critical for safety, immediately halts all operations in an emergency.
• USB Port: Facilitates easy backups and data transfers.
• Identification: Each unit has a unique robot F number, which is essential for technical support and identifying system specifications.
• Fully integrated 2D iR Vision hardware.
• Dual Check Safety (DCS) position and speed monitoring.
• Safety PMC option to support safety functions without additional hardware.

Internal Components

• Operator Panel: Houses the mode selector, cycle start button, and E-stop.
• Circuit Breaker: Controls power supply to the unit, with positions for on, tripped, and off.
• CPU and Axis Amplifiers: Located inside the cabinet, these are essential for processing and motor control.
• Heat Exchange Unit: Maintains optimal temperature within the controller.
• Battery Backup: Ensures data retention for the robot's PC.
• PROFINET Card: Facilitates communication with external devices and PLCs.
• Built in Discrete I/O: 28 inputs, 24 Outputs
• Supported Safety Networks: EIP Safe, DeviceNet Safe, Profisafe, FL-Net Safety
• Supported I/O Networks: Fanuc Model A, Fanuc Process I/O, Fanuc I/O Link, DeviceNet, Ethernet IP, Interbus, CC-Link, and Profinet.

Overview of the R-30iB Controller

The R-30iB Controller is the standard, full-sized unit designed for more extensive and demanding applications. This Controller is available in two configurations. The A-Cabinet is FANUC's compact and stackable solution. Perfectly suited to industrial environments, it is designed for limited/2 aux. axes. The B-Cabinet, This model contains the same technology as the A-Cabinet, but with ample space for additional amplifiers or I/O modules. It is perfectly suited to industrial environments.

Key Features

• Larger Size: Provides more space for additional components and features.
• Enhanced Operator Panel: Includes more buttons for detailed control, such as power LED indicators, fault indicators, and additional cycle start buttons.
• More Robust Circuit Breaker: This is located on the left side and is used to power the unit on and off and access the internal components.
• Multiple Ethernet Ports: Enables Ethernet communication and FTP connection for data transfers.
• LED Display: Displays alarm numbers for easy troubleshooting.
• Fully integrated 2D iR Vision hardware.
• Dual Check Safety (DCS) position and speed monitoring.
• Safety PMC option to support safety functions without additional hardware.

Internal Components

• Operator Panel: Similar to the Mate controller but with more connections due to additional buttons.
• Main Board and Servo Amplifier: Located inside, essential for controlling the robot’s movements.
• Fuses and PROFINET Card: Includes various fuses, especially for the E-stop and safety circuits, along with the PROFINET card for communication.
• Safety I/O A-Cabinet 2 in/2 out Cat. 4 PL(e). B-Cabinet 8 in/8 Out Cat. 4 PL(e).
• Supported Safety Networks: EIP Safe, DeviceNet Safe, Profisafe, FL-Net Safety
• Supported I/O Networks: Fanuc Model A, Fanuc Process I/O, Fanuc I/O Link, DeviceNet, Ethernet IP, Interbus, CC-Link, and Profinet.

Safety and Maintenance

Note: Before opening the cabinet. Maintenance should only be performed by qualified personnel.

Staying Safe During Inspection When inspecting the robot, be sure to

· Turn off power at the controller. · Lock out and tag out the power source at the controller according to the policies of your plant. · Turn off the compressed air source and relieve the air pressure.

· If robot motion is not needed for inspecting the electrical circuits, press the EMERGENCY STOP button on the operator panel.

· Never wear watches, rings, neckties, scarves, or loose clothing that could get caught in moving machinery.

· If power is needed to check the robot motion or electrical circuits, be prepared to press the EMERGENCY STOP button, in an emergency.

· Be aware that when you remove a servomotor or brake, the associated robot arm will fall if it is not supported or resting on a hard stop. Support the arm on a solid support before you release the brake.

The R-30iB and R-30iB Mate controllers prioritize safety with features like the E-stop and mode selector switches. Regular maintenance, such as checking the fuses and ensuring proper heat exchange, is essential for optimal performance.

Opening the Cabinet

When accessing the internal components, always prioritize safety:

1. Power Off: Ideally, power off the controller before opening the cabinet.
2. Use a Screwdriver: (I would rewrite this statement) In some cases, you may need to open the cabinet while the robot is running for troubleshooting. Use a flathead screwdriver to open the cabinet carefully.
3. Be Cautious: Remember, there are live circuits inside. Always follow your companies Lockout/Tagout procedures. Handle with care to avoid shock hazards.

Troubleshooting and Diagnostics

Understanding the internal layout of these controllers aids in effective troubleshooting. For instance:

• LED Indicators: Help identify faults quickly.
• Ethernet Ports: Useful for network diagnostics and FTP connections.
• PROFINET and Fuses: Ensure communication and safety circuits are functioning correctly.

A Tale of Two Controllers: Exceptional Fanuc Models

Choosing between the R-30iB and R-30iB Mate controllers depends on your specific application needs. The Mate controller is perfect for compact spaces and smaller applications, while the full-sized R-30iB offers more features and robust performance for demanding tasks.

By understanding the differences and internal components, you can make an informed decision and ensure the efficient operation of your Fanuc robots. For more information and support regarding Fanuc controllers, contact T.I.E. Industrial today. We are a leading supplier of refurbished Fanuc replacement parts and can assist you with our extensive knowledge, inventory, and resources to help you get the most out of your Fanuc controllers and robotic systems.
