ABB IRB 1100-4/.475

ABB All ABB Robots

Request a Quote

1/4
Payload
Payload
5 kg
Reach
Reach
901 mm
Axes
Axes
6

Details

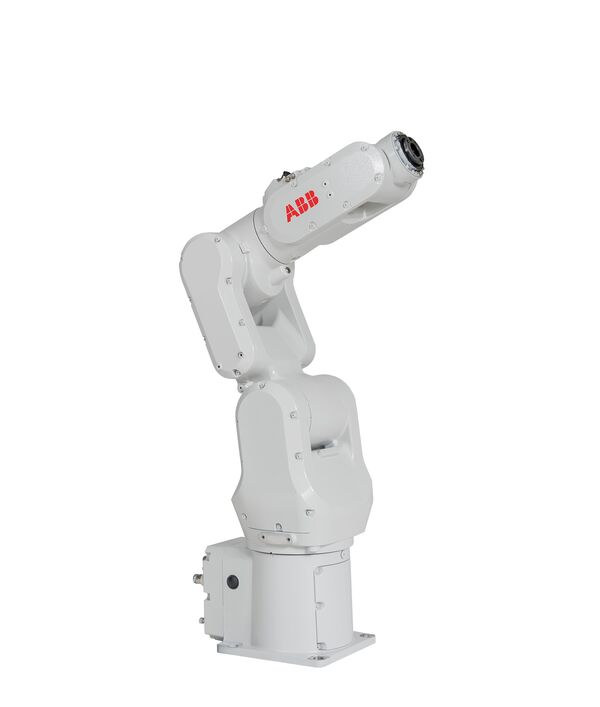

The ABB IRB 12005÷0.9 robot is faster and more com­pact than sim­i­lar robots in its class. With a 5 kg pay­load and a 901 mm reach, this ABB IRB 12005÷0.9 robot can han­dle heav­ier pay­loads and reach far­ther than its oth­er IRB1200 variant.

The ABB IRB 12005÷0.9 robot is ide­al for mate­r­i­al han­dling and machine tend­ing appli­ca­tions. It has an IP40 stan­dard rat­ing and is very easy to inte­grate due to its four air ducts, 10 cus­tomer sig­nals, and Eth­er­net capabilities.

If you are look­ing for a light­weight, com­pact robot that can deliv­er high speeds and pre­ci­sion, the ABB IRB 12005÷0.9 IRC5 robot may be just what you need.

Specs

Payload
5 kg
Reach
901 mm
Axes
6
Repeatability
0.06 mm
Mass
54 kg
Structure
Articulated
Mounting
Floor, Inverted, Angle

Motion Speed

J1
288 °/s (5.03 rad/s)
J2
240 °/s (4.19 rad/s)
J3
+70° - 200°
J4
±270°
J5
405 °/s (7.07 rad/s)
J6
600 °/s (10.47 rad/s)

Motion Range

J1
±170°
J2
+130° - 100°
J3
+70° - 200°
J4
±270°
J5
±130°
J6
±360°
